Name: HD07VRPH2 12VDC Highbay Dimmable PIR Sensor UL FCC Certification
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : HD07VR-PH-2

Certification : UL FCC

Place of Origin : China

MOQ : 120pcs/ctn

Price : Negotiable

Payment Terms : D/A, D/P, T/T

Supply Ability : 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days

Delivery Time : Standard Models Within 3 Weeks

Packaging Details : Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton

Color : White

Connection : 3 Pin

IP Rating : 65

Warranty : 3 Years

Function : Dimmabe

Control : Remote

Installation : Ceilling Highbay

Suitable : Industrial

Contact Now

HD07VR-PH-2 12VDC Highbay Dimmable PIR Sensor

Features:

PIR sensor head, 12VDC powered, remote control.

Bi-level dimming, daylight threshold and dusk/dawn function

Sensor Parameter:

Detection Area	25%/50%/75%/100%
Holdtime	5s/30s/1min/3min/5min/10min/20min/30min
Daylight Threshold	Disable/ 2lux/ 10lux/ 30lux/ 50lux/ 80lux/ 120lux
Standby Dimming Level	10%/20%/30%/50%
Standby Period	0s/10s/30s/1min/5min/10min/30min/60min+∞
Dusk/Dawn Sensing/ Photocell	Detection Area - 100% Holdtime - 5S Daylight Threshold - disable Standby Period - 0S Standby Dimming Level - 10%
Control	Standard Partner HD05R, the LCD screen display remote (purchase seperately)

Other Parameter:

Input Range	12VDC
Voltage Range	10-15VDC
Connection	12VDC input/ Black&White wire; DIM+/ Purple wire; DIM-/ Pink wire
Working Temp	-20°C~+60°C

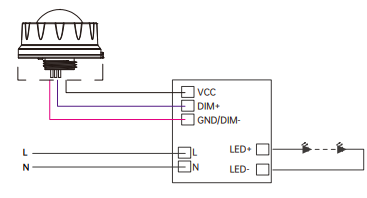

Connection:

*Contact us*
