Brand Name : HAISEN
Model Number : HT16V
Certification : CE TUV RED SAA
Place of Origin : China
MOQ : 100PCS
Price : Negotiation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 100000pcs per month
Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order
Packaging Details : Bubble pack, paper flat, outer carton.
Product Name : Microwave Motion Sensor
Function : Driver Sensor
Input voltage : 120~240VAC 50/60Hz
Input current : 0.3A Max
Life time : 30,000 hours
IP rating : IP20
Round 120V 240VAC IP20 Compact LED Driver Mechanical Structure
CE TUV RED SAA Approved LED Driver Sensor Round Design 120-240VAC For Ceiling Light
Detailed Product Description
| Input voltage | 120~240VAC 50/60Hz |
| Input current | 0.3A Max |
| Input power | 16W |
| Detection area | 50%/100% |
| Hold time | 5s/90s/ 5min/10min |
| Daylight threshold | 2Lux /10Lux /50Lux/Disable |
| Stand-by period | 0s/10s/10min /+∞ |
| Stand-by dimming level | 10%/30% |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <0.3mW |
| Detection angle | 30°~150° |
| Mounting height | Max.6m |
| Detection range | Max.ø14m |
| Output LED current | 0.3A/0.35A |
| Output LED voltage | 24V~52V DC |
| Output LED power | 7W~16W |
| Empty load voltage | ≤63V |
| Power factor | ≥0.9 |
| Efficiency | 87% (Max.) |
| Operating temperature | -20°C~50°C Tc: 80°C |
| Abnormal protection | SCP:Auto recovery,OVP,OCP,OTP |
| EMC standard | EN55015 |
| Safety standard | EN61347-1 EN61347-2-13 EN60598-1 |
| IP rating | IP20 |
| Life time | 30,000 hours |
| Warranty | 3 years |
|
|

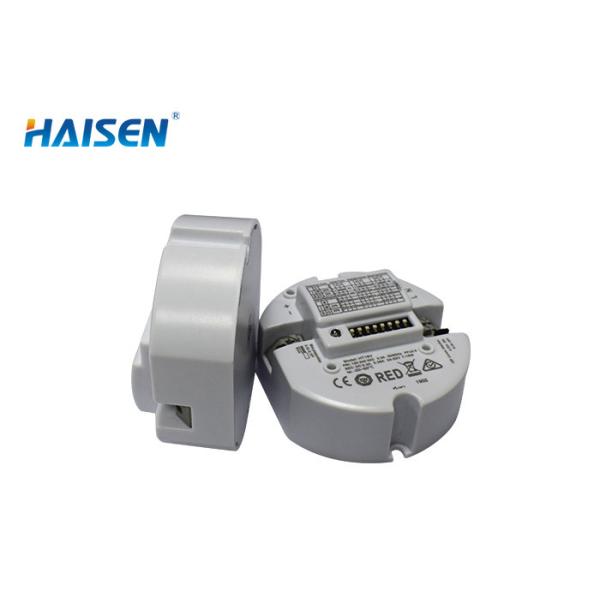

Round 120V 240VAC IP20 Compact LED Driver Mechanical Structure Images |
