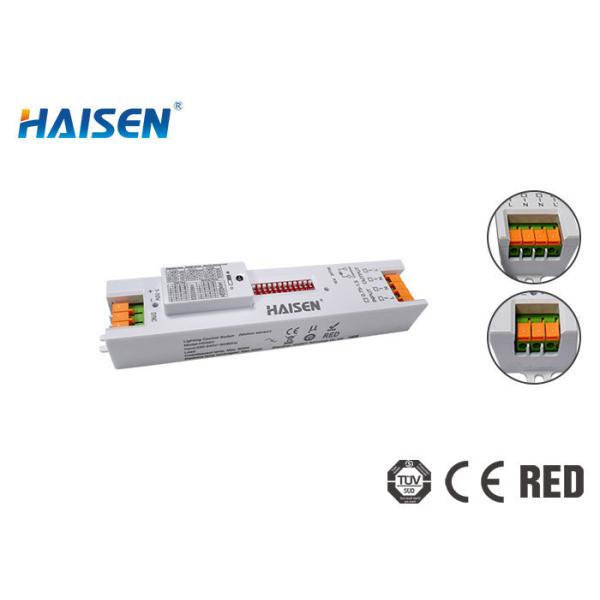

Name: Adjustable HD02V PIR Microwave Motion Sensor Long Detection Range
Brand: HAISEN
Price: 1 USD

Brand Name : HAISEN

Model Number : HD02V

Certification : CE TUV RED RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk ordder

Packaging Details : Bubble pack, paper flat, outer carton

Installation : Installed inside lamps

Daylight threshold : 2Lux/10Lux/50Lux/Disable

Microwave power : <0.3mW

Detection angle : 30°-150°

IP rating : IP20

Switching capacity : Max.400W(Control gear) Max.800W(Incandescent lamp)

Contact Now

Adjustable HD02V PIR Microwave Motion Sensor Long Detection Range

Long Detection Range CE TUV RED Certificate Dimmable Sensor HD02V

Feature:

Built-in adjustable daylight sensor.
7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable.
Ultra–Slim design makes it suitable to fix within most triproof lamps.
Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via DIP switches.
Offer on off and dimming function.

Speicification:

Input	Voltage Range	220~240 VAC 50/60Hz
Sensor Parameters	Hold time	5s/30s/1min/5min/10min/20min/30min
	Detection Area	10%/50%/75%/100%
	Daylight Sensor	2Lux/10Lux/50Lux/Disable
	Mounting Height	Max.15m(ceiling mounted);Max.3m(wall mounted)
	Detection range	Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Wireless Parameters	Operating Frequency	5.8 GHz ±75 MHz
Wireless Parameters	Function	0N/0FF+dimming function
Operating Environment	Operating Temperature	-20°C~+55°C
Safety & EMC	Certificate Requirement	CE, ROHS,TUV, RED
Others	Warranty	5 years
	Installation	Installed inside lamps
	IP Rating	IP20
	Packaging Requirement	Bubble pack, paper flat, outer carton.
	Life	50000h
